Problems with Star Wars monitor, need help!
« on: April 17, 2010, 01:43:04 PM »
Mybe it's a noob question, but this happened to my Star Wars Trilogy cabinet's monitor:
It was turned on, my 6 years old nephew played with it and there was a short circuit somewhere in my house, so I have to switch back the fuses to bring back electricity.

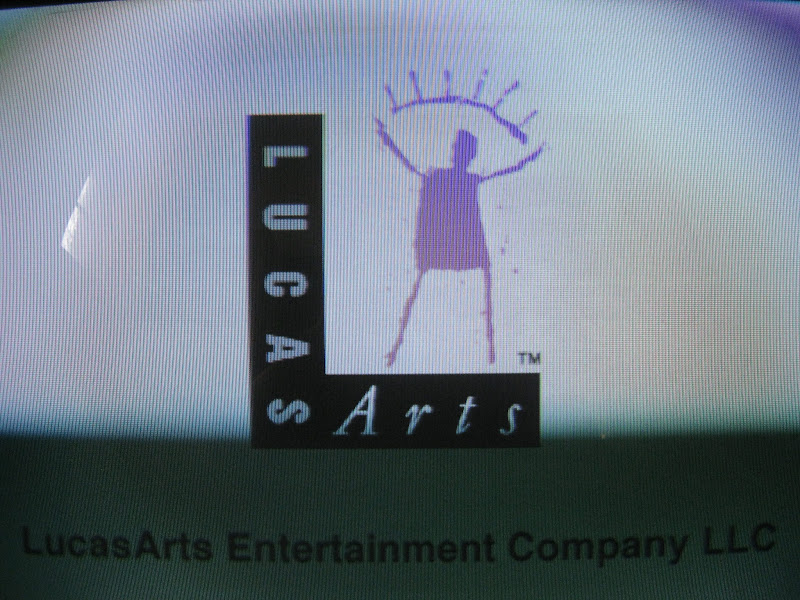

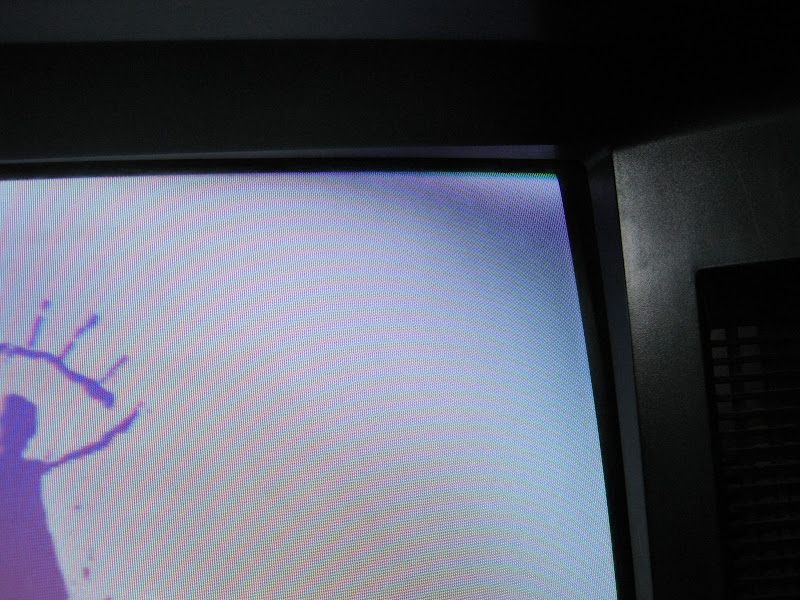

When it started to work again, colours was very strange, a lot of them was turned to purple(yellows mostly)



Is it rubbish or could be fixed somehow? ???
Thanks in advance. ;)

italiandoh

  • Member
  • **
  • Posts: 434
  • Italy
    • View Profile
Re: Problems with Star Wars monitor, need help!
« Reply #1 on: April 17, 2010, 03:57:51 PM »
Is it rubbish or could be fixed somehow? ???

It is just magnetized. Check if the degauss of the monitor is connected and working. To me it looks like it just need a good degauss. If the degauss system of the monitor is working, switch it on and off a few times at 15 seconds intervals and it should be OK. If not, you need to find an external degauss and use it on the monitor.
Bye,

Matteo

level42

  • ArcadeLifeStyler'
  • ***
  • Posts: 13555
  • Ridderkerk, arcade capital of Europe !
    • View Profile
    • Arcade 42
Re: Problems with Star Wars monitor, need help!
« Reply #2 on: April 17, 2010, 04:52:19 PM »
Don't think the 15 seconds intervals will be long enough. The PTC won't have cooled down in that period of time.

But this will go away after a week or so, turning it on once in a while (2x a day or something like that).

You didn't move the cab while it was running by any chance ? Often this is the cause for this happening...

Belike

  • ArcadeLifeStyler'
  • ***
  • Posts: 4781
  • Budapest, Hungary
    • View Profile
Re: Problems with Star Wars monitor, need help!
« Reply #3 on: April 17, 2010, 09:24:26 PM »
Thanks for your help, I'm really happy, that I don't have to look for a new monitor.
And Andre, I didn't move the cabinet since I bought it about a month ago. ;D

level42

  • ArcadeLifeStyler'
  • ***
  • Posts: 13555
  • Ridderkerk, arcade capital of Europe !
    • View Profile
    • Arcade 42
Re: Problems with Star Wars monitor, need help!
« Reply #4 on: April 17, 2010, 10:58:30 PM »
OK, well it must have been the power dip then...

By the way, at first instance I thought it was about a Atari VECTOR monitor because you mentioned SW ;)

Belike

  • ArcadeLifeStyler'
  • ***
  • Posts: 4781
  • Budapest, Hungary
    • View Profile
Re: Problems with Star Wars monitor, need help!
« Reply #5 on: April 17, 2010, 11:10:23 PM »
OK, well it must have been the power dip then...

By the way, at first instance I thought it was about a Atari VECTOR monitor because you mentioned SW ;)

Lol, I forgot "Trilogy", just 15 years difference! ;D
